The 510 is the culmination of Schaefer’s 25-years of yacht building expertise and Pininfarina’s 80-year history of design and engineering innovation. A tour de force of style, with a bold, ele-gant look, it makes an impressive statement. Featuring innovative engineering, the 510 also has the performance you’d expect from a thoroughbred. The interior features a modernist esthetic with clean lines and intelligent use of space, making it even roomier.

From the smallest detail, to the largest, nothing has been overlooked on the 510. This penchant for perfection is a way of life at Schaefer Yachts and part of our commitment to provide you the most exhilarating, enjoyable on-water experience possible.

The 510 is boating reimagined by Schaefer Yachts and Pininfarina.

Exterior design

Interior design

Video presentation

Features

Boat length: 15.82 m

Beam length: 4.36 m

Draught: 1.26 m

Light craft mass: 18,300 kg

Deadrise angle: 17 degrees

Fresh water capacity: 470 L

Air draught: 5.18 m (add 1.5 m for clearance when passing under bridges)

Passenger capacity (day): 16

Passenger capacity (night): 6+1

Designer: Pininfarina / Marcio Schaefer



Download PDF Catalogue

Performance

Top speed: 27.5 knots

Cruising speed*: 24 knots

Fuel consumption**: 129.7L/h

Range: 164 N.M.**

Fuel capacity: 1,300 L

Installed gensets: 1 x 11.5 kW

​* Tests performed in flat water, without excessive wind, no anti-fouling paint and with clean hull and propellers. The engines used on the test were 2 x Volvo Diesel IPS 600 (D6 435 HP).

** The maximum speed and cruising speed data as well as fuel consumption and trip duration depend on the onboard loading conditions, ambient temperature, ambient pressure, fuel line, sea state, current, hull bottom condition and stern drive, axles, propellers. There may still be a variation of 7%.



Providing you the most exhilarating, enjoyable on-water experience possible

Modern esthetic with clean lines and intelligent use of space

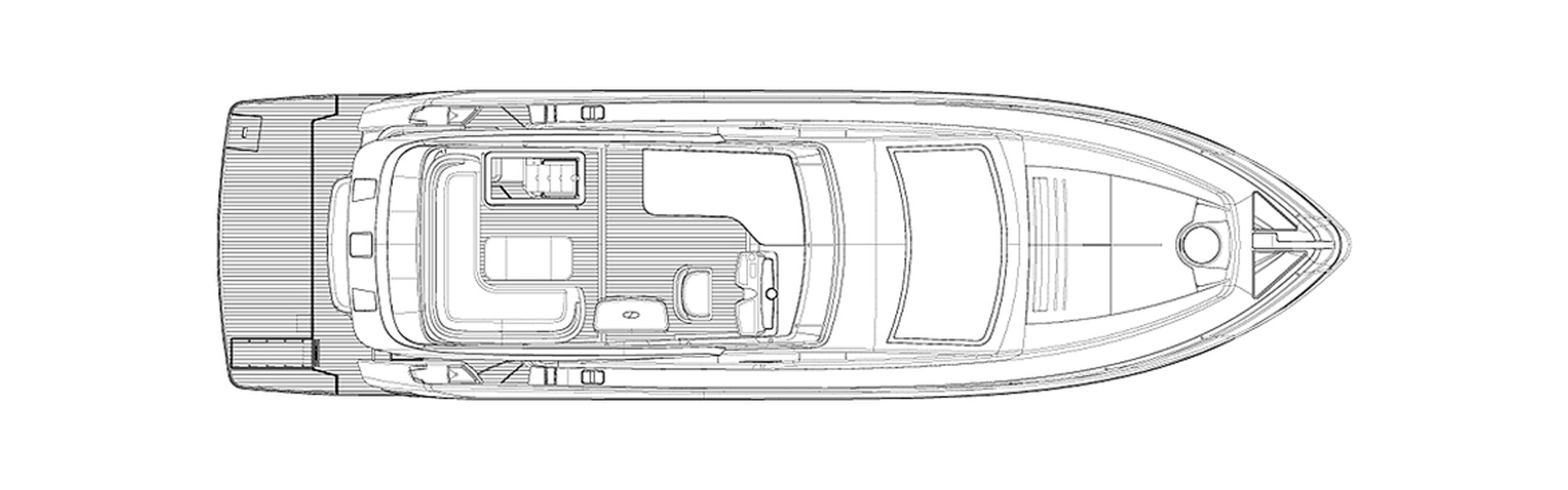

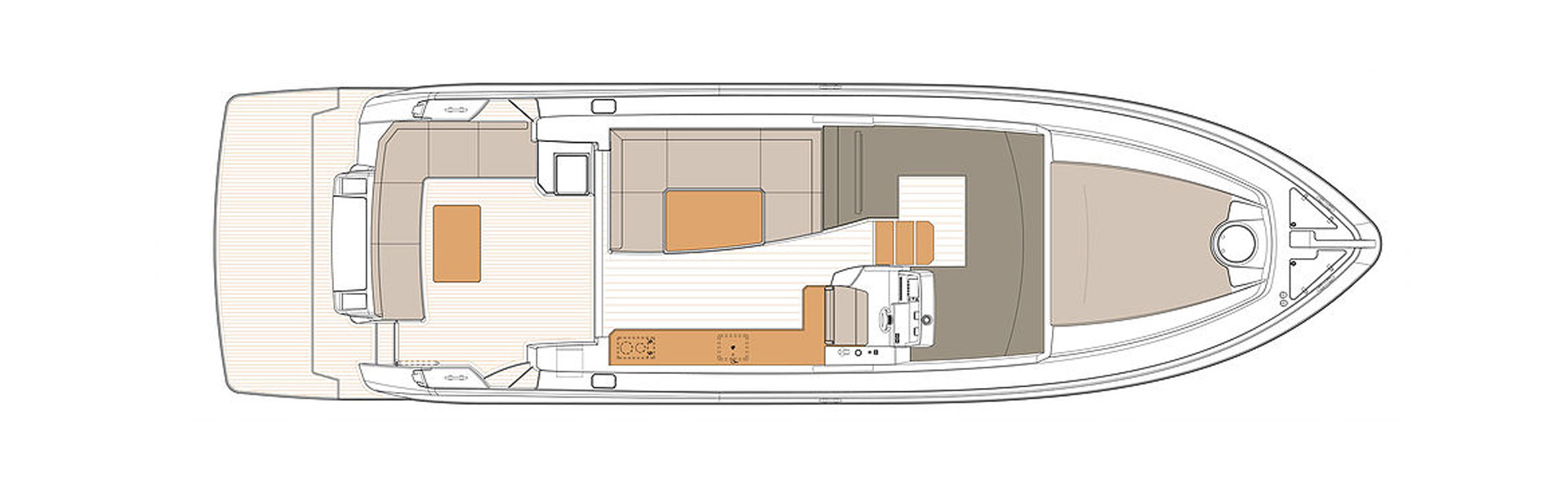

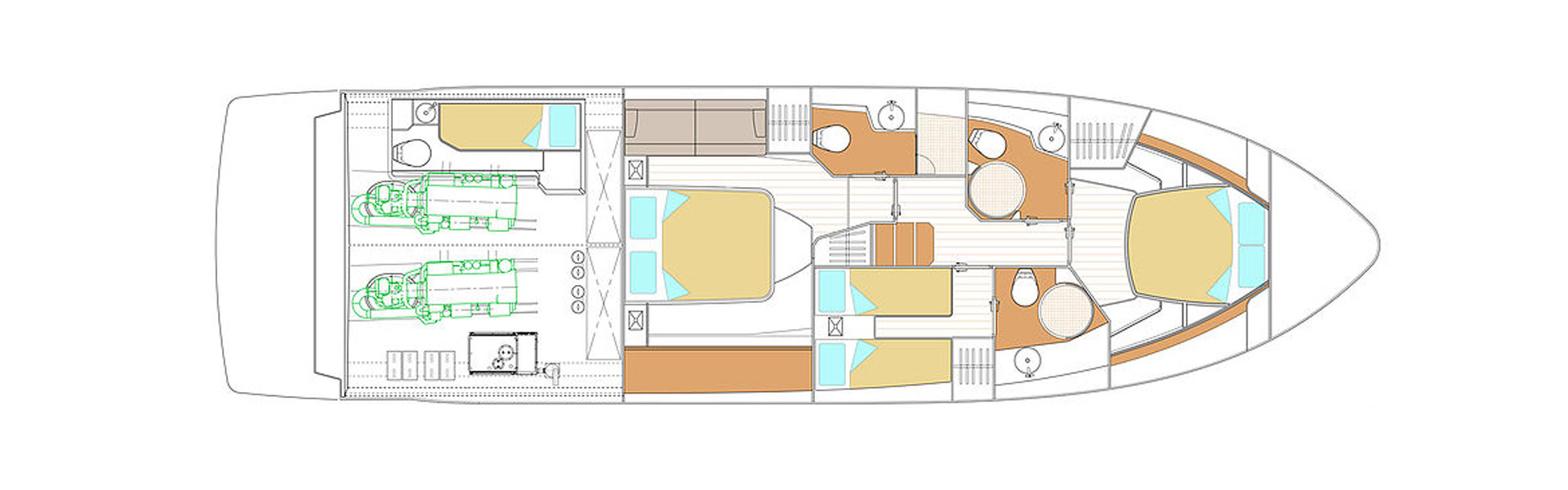

Yacht layout - Flybridge, Main Deck, Cabins

510pf_layout001
510pf_layout002
510pf_layout003
For additional information or an offer request, please send us a message. Contact Us
